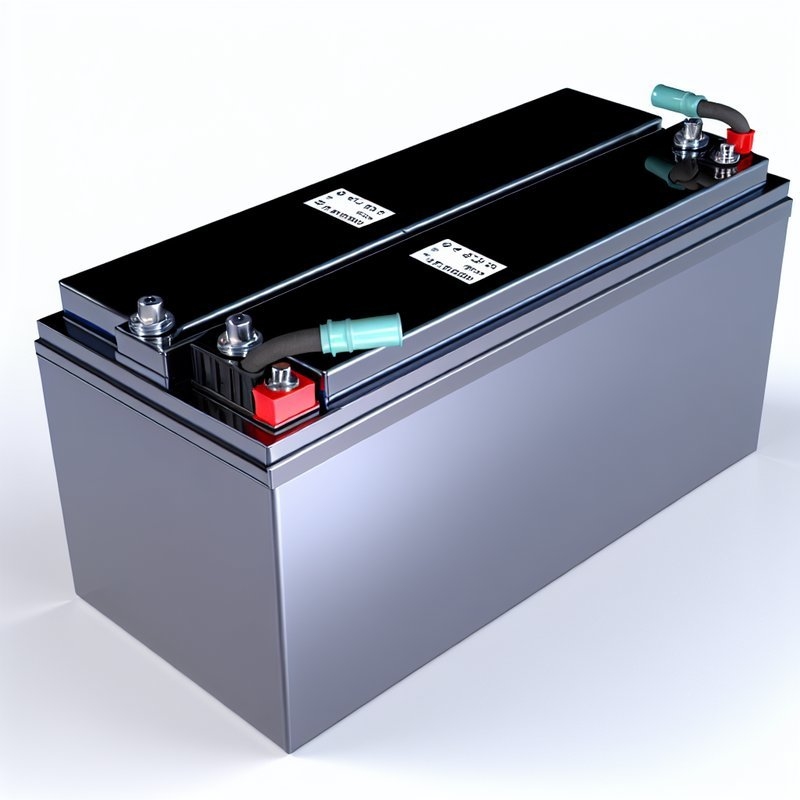

51.2V 230Ah LiFePO4 Golf Cart Battery with Smart BMS

51.2V 230Ah LiFePO4 Golf Cart Battery with Smart BMS

Nom De Marque:	TINKO/OEM
Numéro De Modèle:	KTQC-48230
Nombre De Pièces:	1 PCS
Prix:	Négociable
Capacité à Fournir:	100pcs/day

Informations détaillées

Description de produit

Informations détaillées

Place of Origin:

China

Certification:

CE/ROHS/MSDS/UN38.3

Document:

Brochure du produit PDF

Battery Type:

Lifepo4

Voltage:

51.2V

Capacity:

230AH

Weight:

71kg

Size:

525*356*270mm

Usage:

home & business

Warranty:

5 years

Cycle Life:

≥6000

Packaging Details:

1pc/parer carton

Supply Ability:

100pcs/day

Mettre en évidence:

51.2V LiFePO4 golf cart battery

230Ah golf cart battery with BMS

smart BMS golf cart battery

Description de produit

51.2V 230Ah Golf Cart LiFePO4 Lithium Battery With Smart BMS 11.8KWH 48V

Product Attributes

Battery Type	Lifepo4
Voltage	51.2V
Capacity	230AH
Weight	71kg
Size	525356270mm
Usage	home & business
Warranty	5 years
Cycle Life	≥6000

Product Description

48V / 51.2V Lifepo4 Battery 230AH Battery for the Golf Cart and Sightseeing Car

Lithium iron phosphate (LiFePO4 or LFP) batteries have become increasingly popular in the vehicle industry because of their many advantages over traditional lead-acid batteries and even over other lithium-ion batteries.

Lifepo4 batteries have many advantages over traditional lead-acid batteries and other lithium-ion batteries for marine and cart applications also in other vehicles. They are much safer, they have a longer cycle life, higher temperature tolerance, lower self-discharge rate, and higher energy density, which makes them more efficient, durable, and reliable for vehicle use. All these factors make LFP batteries a great choice for marine and vehicle applications such as golf cart, electric forklifts, sightseeing vehicles, pickup trucks, electric boats, yachts, and even ships and submarine.

TINKO uses grade A LiFePO4 cells to maintain higher energy density, stable performance, and greater power of the battery pack. We are dedicated to provide green power solutions and are one of the leaders in the LiFePO4 battery industry thanks to our top-grade cells and authoritative accreditations.

Product Parameters

Items	Specification	Notes
Nominal Capacity	230.0Ah	0.5C / 0.5C, 25℃ ± 2℃, 2.5 V ~ 3.65 V, Fresh cell
Nominal Energy	11.776kWh
Nominal Voltage	51.2V	0.5C discharge, 25℃ ± 2℃, 40 V ~ 58.4 V
End-off-charge Voltage (Umax)	58.4 V	/
End-off-discharge Voltage (Umin)	40 V (T > 0℃) 2.0 V (T ≤ 0℃)	/
Standard Charging Current	115 A	0.5C
Maximum Instantaneous Charging Current	2C	30 s, ≤ 80% SOC, 25℃ ±2℃
Standard Discharging Current	115 A	0.5C
Maximum Instantaneous Discharging Current	3C	30 s, ≥ 30% SOC, 25℃ ± 2℃
Initial IR	0.20 mΩ ± 0.05 mΩ	AC, 1 kHz, 19% ~ 40% SOC, Fresh cell
Direct Current Resistance (DCR)	≤ 1.2 mΩ	25℃, 50% SOC, 1C, 10 s, Fresh cell
Weight	71kg	/
Dimension (With Insulation Film)	Height: 270mm (With Terminal) Length: 525mm Width: 356mm	(300 kgf ±20 kgf compression force, Delivery SOC)
Operation Temperature	Charge Temperature: -10℃~65℃ Discharge Temperature: -35℃~65℃	/
Storage Temperature	3 months: 0℃ ~ 35℃ 1 month: -20℃ ~ 45℃	Delivery SOC
Swelling force at EOL	≤ 30000 N	80% SOH
